          2. Aggregate Load Cell

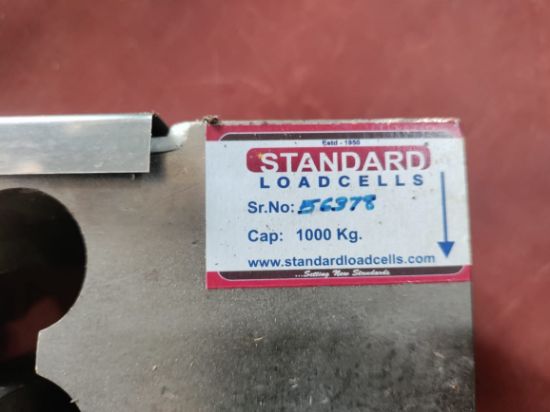

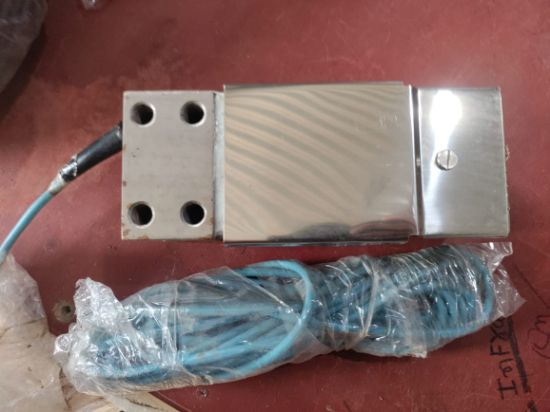

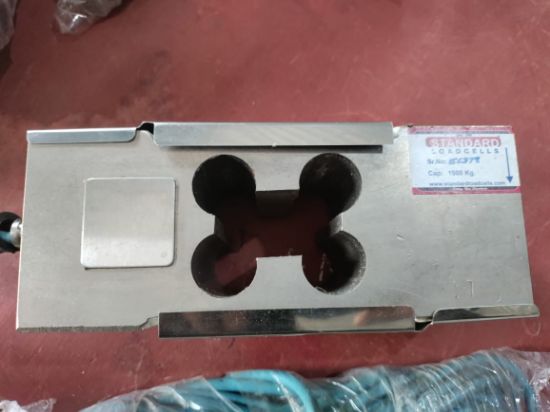

          Aggregate Load Cell

          Be the first to review this product
          Features:
        • High Tool steel Construction makes it very rugged for shock loads and is suitable for harsh application
        • Supports the Platform size up to 1000X1000(mm)
        • Single Point Capability for Platform Scale
        • Minimum error for Off-Centre loading
        • Application
        • Steel Weighers
        • Platform Scales-Large Size
        • Construction Machinery
        • Industrial Weighing Systems
          • Manufacturer: STANDARD
          Delivery date: 1-2 days
          NRs 37,456
          NRs 41,618
          pcs.

          Features:

          • High Tool steel Construction makes it very rugged for shock loads and is suitable for harsh application
          • Supports the Platform size up to 1000X1000(mm)
          • Single Point Capability for Platform Scale
          • Minimum error for Off-Centre loading
          • Low profile

          Application

          • Steel Weighers
          • Platform Scales- Large Size
          • Construction Machinery
          • Industrial Weighing Systems

          Standard Specification:

          • Nominal Output: 2.0mV / V (mili Volt per Volt)
          • Excitation Voltage: 10 VDC - Maximum 15 VDC
          • Platter Size: 1000mm x 1000mm
          • Bolt Distance for fitting: 50mm x 25mm
          • Safe Load: 150% of Rated Capacity
          • Ultimate Load: 200% of Rated Capacity
          • Non Linearity: <±0.025% of FSO (Full Scale Output)
          • Creep (30 minutes): <±0.025% of FSO
          • Zero Balance: <±1% of FSO
          • Input Resistance: 396 ± 10 ohms
          • Output Resistance: 350 ± 5 ohms
          • Temperature Compensation: 0 Degree C to +60 Degree C
          • Material: Electroless Nickle Plated Tool Steel
