- Discharging Capacity: 350 L
- Loading Capacity: 560 L
- Productivity: 10-14 m³/h
- Bags of Cement per batch: 2(50kg/bag)
- Max. size of aggregate: 60mm
- Drum Thickness: 6mm
- Tyre Size: 6.50-16
- Motor Type: Electric Motor
- Voltage: 380V,50HZ,3-Phase/ 410V,50HZ,3-Phase
- Motor Speed: 1480rpm
- Motor Power: 5.5kW
- Diameter of Wire-rope: 12Mm
- Drum Size: Φ1460×1850 mm
- Total Weight: 1500kg
- Overall Size(L X W X H): 3150×2200×3200 mm
- Discharge Way: Reverse Rotation

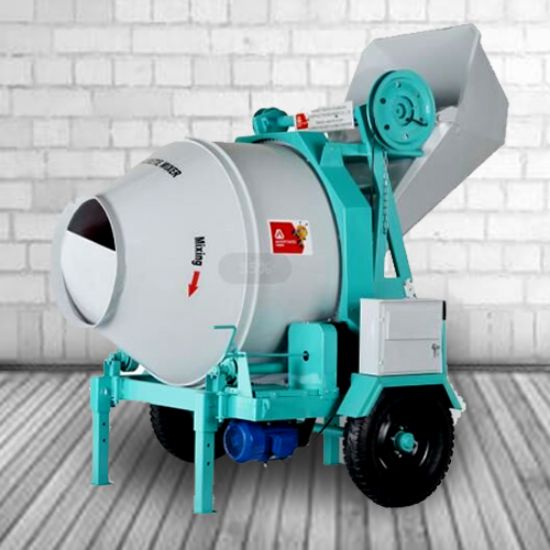

JZC350-EW (Self loading Concrete Mixer with Electric Power and Wire-rope Tipping Hopper) is a self loading concrete mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. And it is featured by novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, it is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
