Product Range: Instant Electric

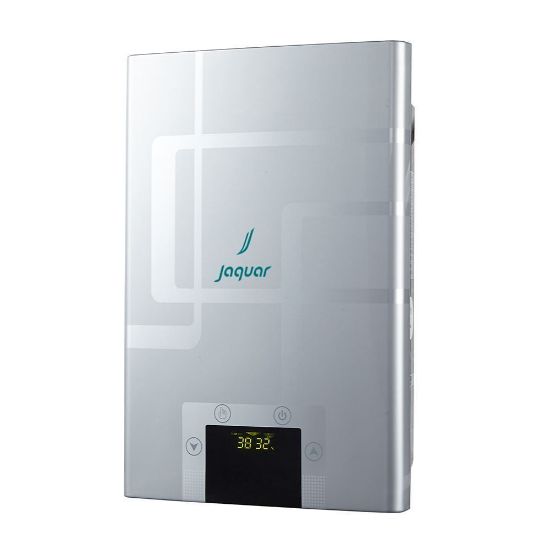

Insta Prime (Digital)
Phase: 3
Rated Watt: 24000
Voltage/ Frequency (V/Hz): 400V3~
Temperature Range: 25-70 ºC
Over- Temperature Protection: YES
Product Size: 385 X 260 X 90
Packing Dimension(HxDxW): 475 X 135 X 367 mm
Net Weight: 4.5 Kg
Built-in Pressure Relief Valve: YES
Heating Element Type: 0.02-0.6MPa (Cast aluminum)
Min. required circuit breaker: 40
Recommended Wire Size: 4
High Pressure Rating: 6 bar
Water flow Rate in Minutes (∆t=30℃): 11.6L/ min
Outer Body Material: ABS
Water Connections: 1/2"
Warranty: 3 Years on Heating Element & 1 year for other Components
