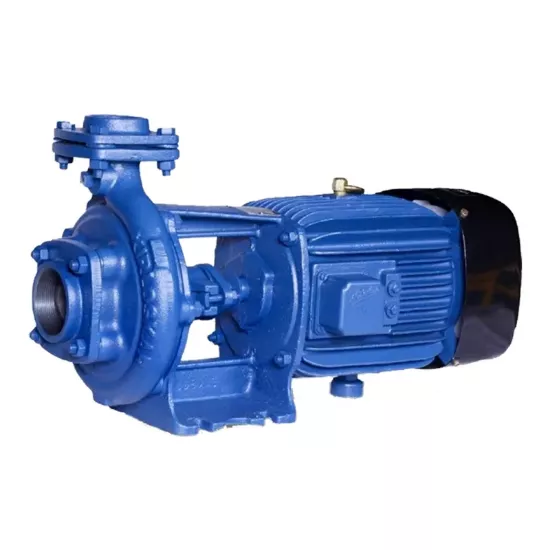

Model No. : KDS-314+
Product Type : Monoblock Pump
Brand : Kirloskar
Motor Power : 3 HP (2.2 kW)
Power : 230 V, 50 Hz, AC Supply
Electricity Connection : Single Phase
Head Range : 20 to 46 Feet (6 to 14 meters)
Protection : IP 44
Pipe Size (Suction x Delivery) : 80 x 80 mm
Discharge Rate : 1140-720 LPM (68400-43200 LPH)
Weight : 64 Kg (Approx.)
Impeller : Cast Iron/Noryl
Delivery Casing : Cast Iron
Motor Body : Cast Iron
Pump Shaft : Carbon Steel
Sealing : Mechanical Seal
Gardening and small farm irrigation
Lawn sprinklers
Water supply for high rise buildings
Domestic and community water supply
Water transfer and circulation
